CDR CiderLab the easy-to-use analysis system to optimise your cider production process by obtaining results in real time.

Determination of tannins in cider and must

The analysis of tannins in cider is essential for understanding the organoleptic characteristics and overall quality of the final product. Tannins, primarily derived from the skins and seeds of apples, contribute to the cider structure and body.

Evaluating their content helps producers optimize the fermentation process, establish the right aromatic complexity, and ensure good product preservation.

Method

Test type: End Point.

Testing time: 10 minutes.

Analysis sessions with multiple samples are possible up to a maximum of 16 tests for CDR CiderLab. This analysis is not available on CDR CiderLab Junior.

Sample treatment

If necessary, the sample shall be degassed using the specific ultrasonic bath (code 222062). In case of tests performed on must, the sample shall be centrifuged (code 222061) or filtered (code 300210).

Principle of the test

The cider sample is dissolved in an appropriate solvent and the absorbance of the solution is read at 280 nm.

Calibration curve

The calibration curve of the determination of tannins in cider with CDR CiderLab instrument, carried out with respect to the reference method, confirmed an excellent linearity of the system over the entire measurement range.

...

Reagent test Kits

Code *300935: 10 test
Code *300940: 100 test
The reagents have a shelf-life of 6 months

Measuring range

AnalysesMeasuring rangeResolutionRepeatability
Tannins0.1 - 1.8 g/L0.01 g/L0.03 g/L

The Analyzers for process and quality control in cider production

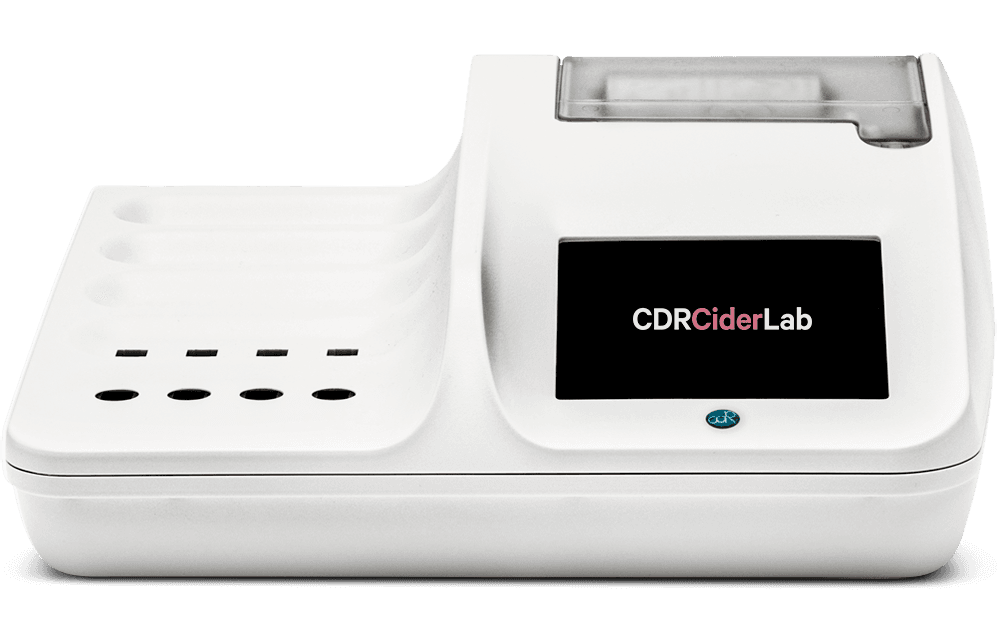

CDR CiderLab

  • Complete analysis panel, supplied already configured

  • Up to 16 determinations simultaneously

  • Possibility of carrying out analyses of the same sample

  • Integrated printer

  • Full connections (LAN - USB - Bluetooth barcode/QR code reader)


CDR CiderLab Jr

  • Partial analysis panel, customisable configuration

  • Up to 3 determinations simultaneously

  • Wireless connection to external printer

  • USB connections
