CDR OxiTester - the analysis system of olive oil used at the olive oil mill without specialised personnel or a chemical laboratory

Analysis of K270 parameter in Olive Oil

In addition to providing useful information on the quality of oil and on its degree of oxidation, this test enables to identify rectified oil added to virgin olive oil, by leveraging the fact that mechanically extracted oils do not contain double or triple conjugated bonds that typically form during rectification.

Rectified oils therefore exhibit high UV absorbance values, specifically in the 270 nm region, which are significantly higher as compared to those of virgin and extra virgin oils. The greater absorption in the 270 nm region, during the most advanced oxidation stages, is determined also by the formation of ketone groups.

Method

Principle of the test

The oil sample is dissolved in an appropriate solvent and the absorbance of the solution is read at 270 nm. Absorbance values are expressed as specific extinction E 1% 1 cm (1% extinction of a fatty substance in the prescribed solvent at a thickness of 1 cm), which is generally indicated as K and sometimes called extinction factor.

Calibration Curve

The test calibration curve, obtained using reference methods, confirms the excellent linearity of the system in all the testing range.

...

Reagent test Kit

Measuring range

AnalysesMeasuring rangeResolutionRepeatability

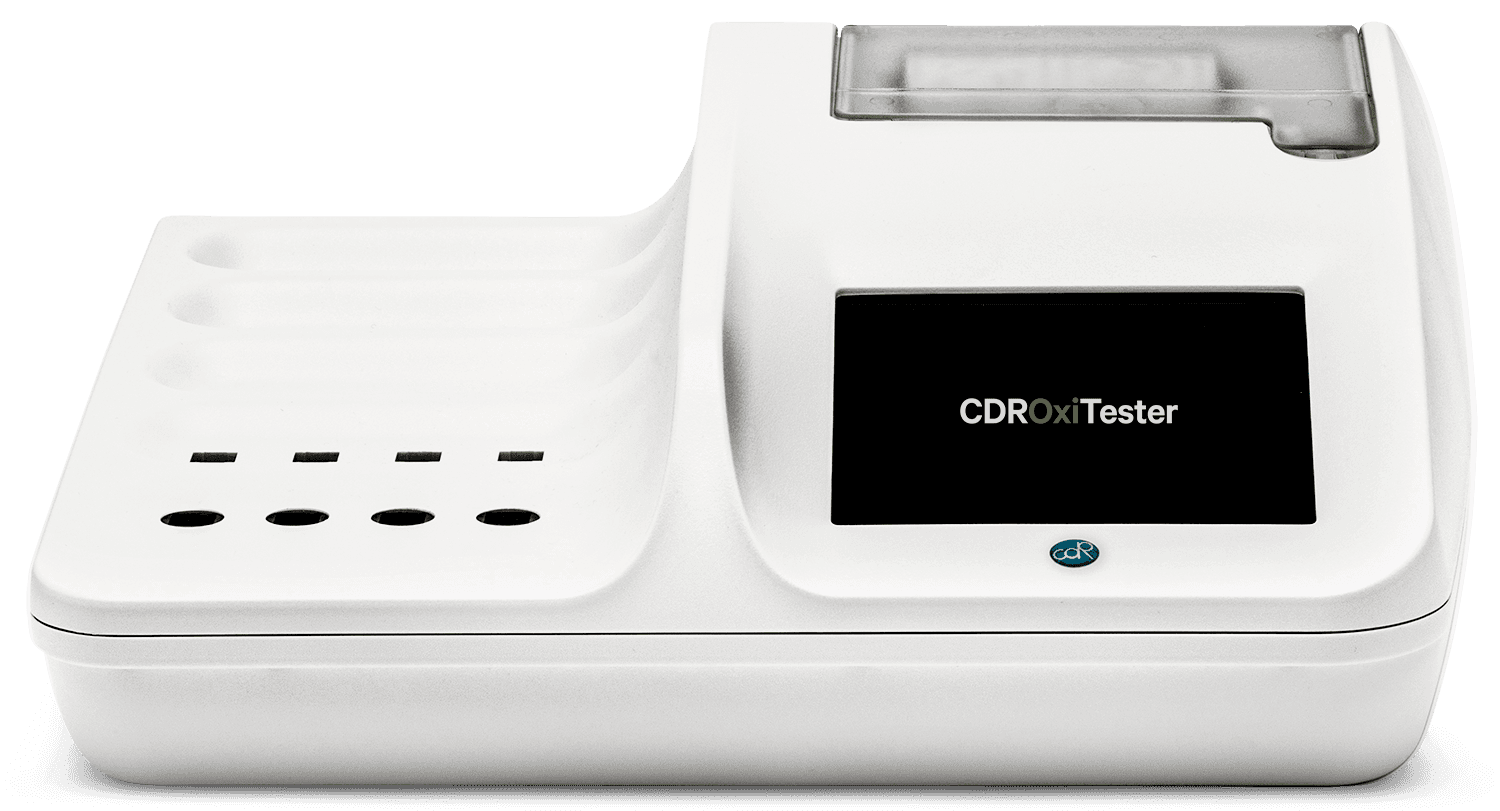

Analyzer for quality control of olive oil


CDR OxiTester

  • Complete analysis panel, supplied already configured
  • Up to 16 determinations simultaneously
  • Possibility of carrying out analyses of the same sample
  • Integrated printer
  • Full connections (LAN - USB - Bluetooth barcode/QR code reader)
